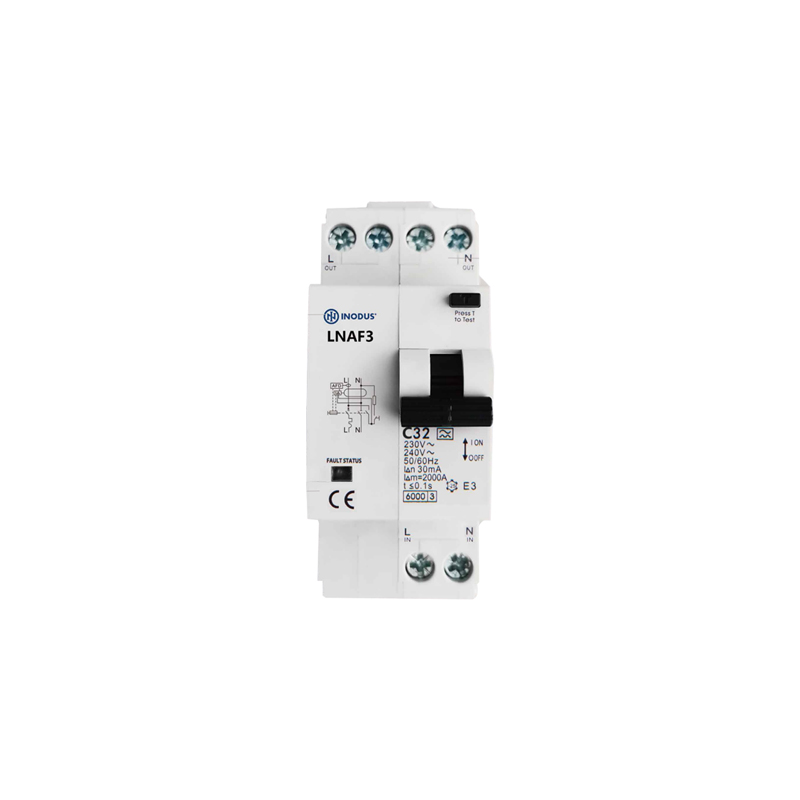

Standards
|
IEC 62606,BS EN 62606
|
| |
IEC 61009-1,AS/NZS 61009.1 (RCBO)
|
|
Rated current
|
6,10,13,16,20,25,32,40A
|
|
Rated voltage
|
230/240V AC
|
|
Rated frequency
|
50/60Hz
|
|
Maximum operating voltage
|
1.1Un
|
|
Minimum operating voltage
|
180V
|
|
Tripping curve
|
B,C
|
|
Rated residual making and breaking capacity (I△m)
|
2000A
|
|
Rated residual operating current (I△n)
|
10,30,100,300mA
|
|
Rated short-circuit capacity (Icn)
|
6kA
|
|
AFDD Test means
|
Automatic test function as per 8.17 IEC 62606
|
|
Classification as per IEC 62606
|
4.1.2 - AFDD unit integrated in a protective device
|
|
Ambient operating temperature
|
-25°C to 40°C
|
|
AFDD ready indication
|
Single LED Indication
|
|
Overvoltage function
|
Overvoltage condition of 270Vrms to 300Vrms
|
| |
for 10 seconds will cause device to trip.
|
| |
LED indication of over-voltage trip will be provided
|
| |
on product re-latch.
|
|
Self test interval
|
1 Hour
|
|
Earth fault current
|
Trip time limit (typical measured value)
|
|
0.5 x Idn
|
No trip
|
|
1 x Idn
|
<300 ms (nominally <40 ms)
|
|
5 x Idn
|
<40ms (nominally <40 ms)
|
| |
Actual Tripping Threshold
|
