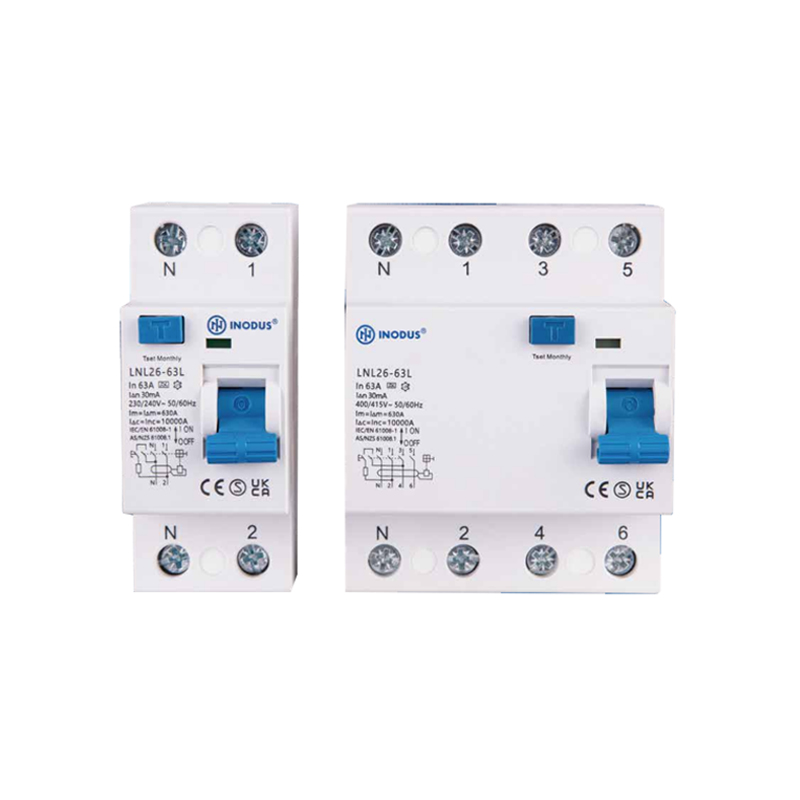

Standards
|
IEC/EN 61008-1,AS/NZS 61008.1 |
| Type |
Electro-magnetic type
|
| Residual current characteristics |
A,AC,S |
| Pole No. |
1P+N,3P+N |
| Rated current |
16,25,32,40,50,63A |
| Rated voltage |
110V~,230/240V~(1P+N),400/415V~(3P+N) |
| Rated frequency |
50/60Hz
|
| Rated making and breaking capacity (I m) |
500A (In=16,25,32,40,50A),630A (In=63A) |
| Rated residual operating current (l n) |
10mA(for 16-32A 1P+N),30mA,100mA |
| |
300mA,500mA |
| Rated residual non operating current (l no) |
0.5I n |
| Rated conditional short-circuit current (Inc) |
10kA |
| Rated conditional residual short-circuit Current (I c) |
10kA
|
| Tripping duration |
Instantaneous tripping≤0.1s |
| Residual tripping current range |
0.5l n〜I n |
| Electro-mechanical endurance |
4000 cycles |
| Connection capacity |
Rigid conductor 25mm²
|
| Terminal Connection Height |
19mm |
| Connection terminal |
Screw terminal
|
| |
Pillar terminal with clamp |
|
Fastening torque
|
2.0Nm |
|
Installation
|
On symmetrical DIN rail 35.5mm |
| |
Panel mounting |
|
Protection class
|
IP20 |
